Product DescriptionCompany Info.<>
- Processing customization:
- Yes
- Model:
- SDS
- Product use:
- Tunnel ventilation
- Applicable scope:
- 地铁;铁路;公路;市政;水电
- Warranty of core components：
- 1 years
1. The purpose and working principle of the tunnel operation jet fan:

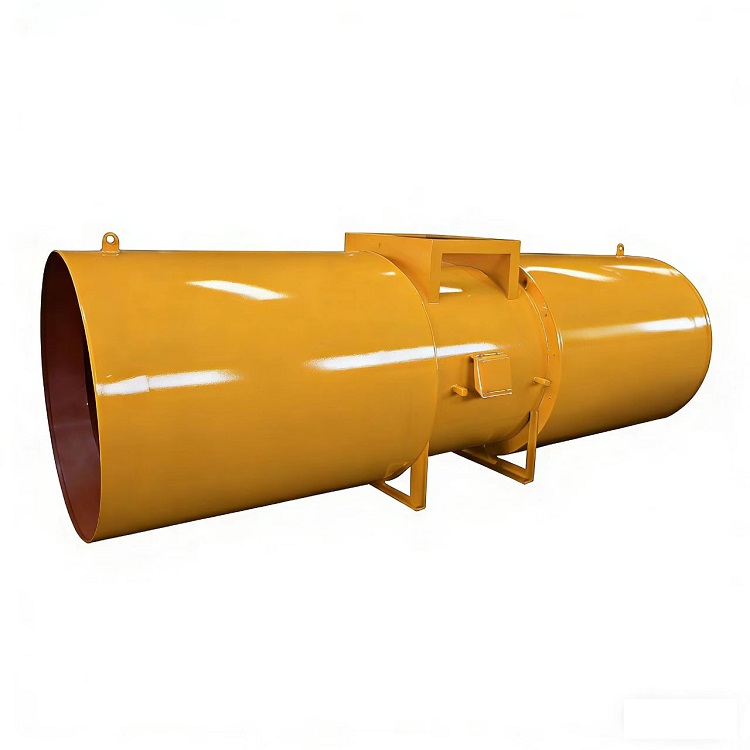

The SDS series tunnel operation jet fan is used in the operation ventilation system of highway and railway tunnels. Generally, several fans are hung at intervals on the top or on both sides of the tunnel. When the fan works, a part of the total airflow passing through the tunnel is inhaled by the fan, and after the blade does work to produce a higher thrust, it is ejected from the fan at a high speed. The high-speed airflow will transfer energy to the air in the tunnel and push the air in the tunnel to flow forward together. When the wind speed to a certain value after a certain distance, the next group of fans will continue to work, thus achieving the ventilation purpose of inhaling fresh air from the tunnel inlet and discharginguted air from the outlet.
2. The characteristics of the fan:
The SDS series tunnel operation jet fan produced by our company can adopt the high-efficiency blades by our company or directly install the fan blades imported from abroad according to the needs of users. They all have the characteristics of low noise, corrosion resistance, high temperature resistance, and cracking, and can be equipped with double-speed motors according to the needs of users, respectively for forced exhaust (smoke) or low-speed ventilation to maintain an energy- operation state. In addition, the SDS series jet fan operates smoothly, is easy to maintain, is beautiful in appearance, and is convenient to use.
The SDS jet fan is generally composed of the following parts:
1. Nozzle: The nozzle adopts a streamlined process, and the fan has a high working efficiency and obvious energysaving effect.
2. Silencer: Both ends of the fan are equipped with silencers, filled with special waterproof sound-absorbing materials, which greatly reduce the of the fan during operation and are more in line with environmental protection requirements.
3. Fan body: The fan impeller and motor are both built-in, and the junction box is led out of the shell, which is convenient for on-site installation. The motor adopts a special design dedicated motor, insulation grade F, protection grade IP54 increase the motor moisture-proof ability, suitable for tunnel environment.
4. Front and rear streamlining body: The designed front and rear streamlined bodies improve the flow field, greatly improves the efficiency of the fan operation.
5. Motor setting oil pipe: After running for 2500 hours, it can be oiled outside the machine which is convenient for maintenance.
In addition, all parts of the fan have been treated with anti-corrosion treatment, and special stainless steel and other materials can be according to the needs of users in special cases.- Name（chinese）
