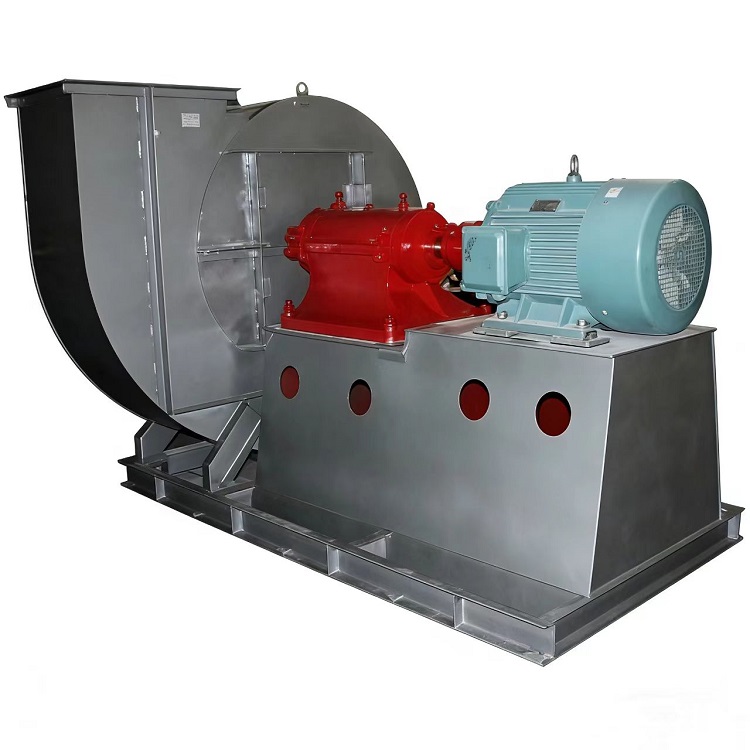

Centrifugal fanis a kind of driven fluid machinery designed based on centrifugal force principle. Its core function is to improve gas pressure and realize directional transportation. It is widely used in ventilation, gas treatment and other scenes of industrial production and civil buildings. It is a key equipment in the field of modern fluid transportation.
Core structure and working principle
- Core components: mainly composed of impeller, casing, motor, coupling, air inlet and air outlet, in which impeller as the core power component, its geometry, blade number directly determines the performance of equipment; casing adopts volute design, responsible for guiding airflow and converting kinetic energy into pressure energy.
- Working mechanism: when the motor drives the impeller to rotate at high speed, the blades exert centrifugal force on the gas, so that the gas obtains kinetic energy and diffuses to the periphery of the impeller; negative pressure is formed in the center of the impeller, and the external gas is continuously sucked in to supplement, and the airflow is deflected and discharged after being guided by the casing, completing the continuous cycle of suction-acceleration-pressurization-discharge.
Key Features and Benefits
- Efficient supercharging: Compared with axial fans, it can produce higher wind pressure, overcome the pressure loss caused by long pipes, filters, etc., and adapt to complex transportation requirements.
- Flexible adaptation: blades are divided into forward, radial, backward three types, can adjust the air volume through variable frequency speed regulation, but also according to the scene to choose anti-corrosion, high temperature, explosion-proof and other special types.
- Stable and low consumption: compact structure, convenient installation, low running noise and no typical stop point, can work within the full characteristic curve range, the motor is not easy to overload, long-term operation cost economy.
- Simple maintenance: simple design of core components, support remote monitoring and troubleshooting, some models can be modular installation or replacement of impellers, adapt to different process requirements.
Widely used scenarios
- Industrial field: covering manufacturing workshop ventilation, chemical waste gas treatment, iron and steel metallurgy dust removal, power boiler air supply, mine ventilation, etc., it is the air circulation center of industrial production.
- Building and civil: suitable for commercial building fresh air system, residential kitchen exhaust, fire exhaust, and air conditioning cold and hot air circulation, to ensure indoor air quality and safety.
- Special scenarios: Through material optimization (stainless steel, glass steel, etc.), it can adapt to high temperature and corrosive environment, and is also used in agricultural greenhouse temperature regulation, sewage treatment aeration, laboratory environmental control and other fields.
Centrifugal fans havebecome an important equipment connecting industrial production and people's livelihood needs due to their high efficiency, reliability, and multi-scene adaptability. Their performance can accurately match different use needs through parameters such as wind pressure, air volume, and efficiency. They are modern ventilation and gas The core support of the conveying system.
