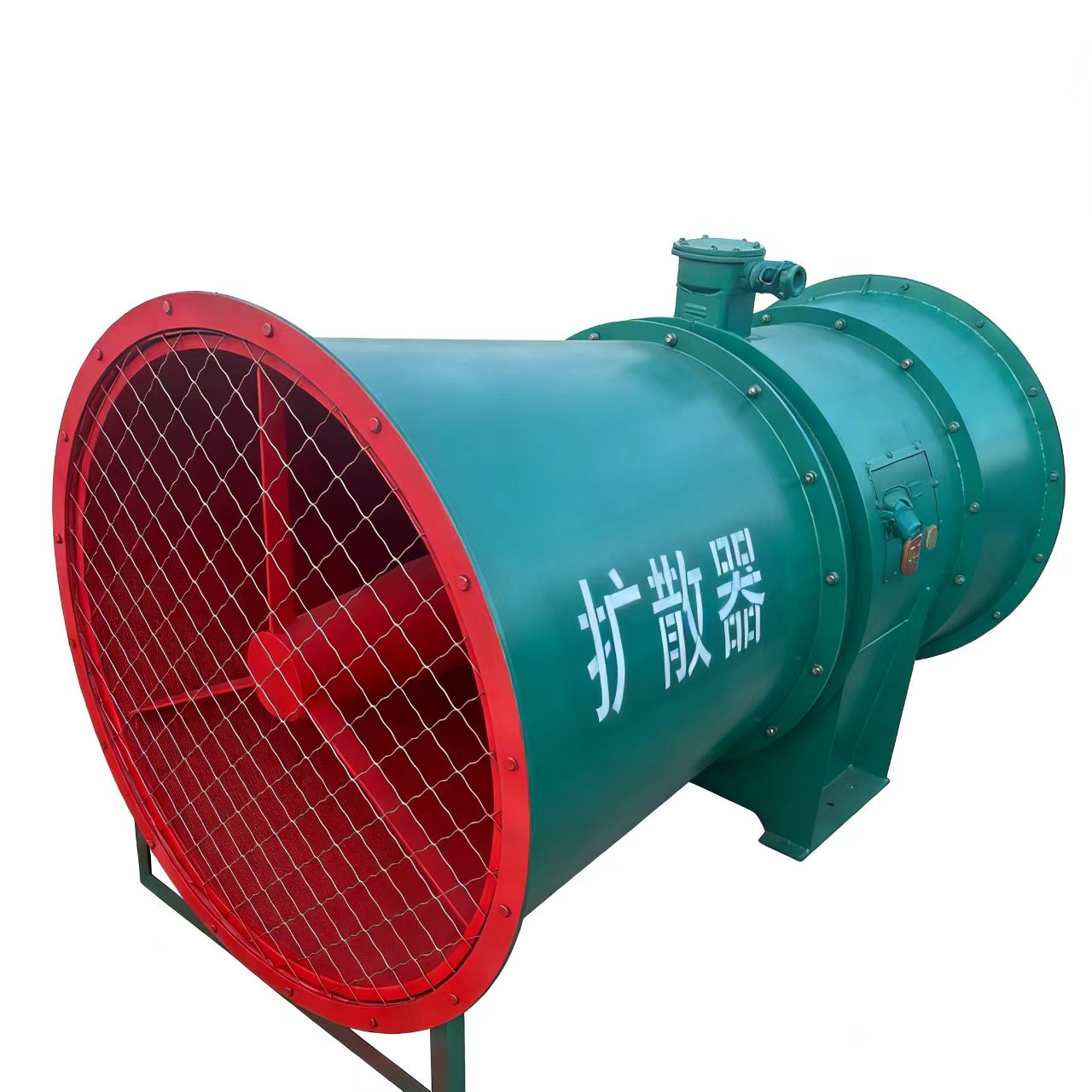

First, the use of mine axial flow main fanMine axial flow main fan (main fan) is based on the coal mine explosion-proof fan, through technical improvement, improve the structure, improve the performance and design, with high aerodynamic efficiency, can be well matched with the ventilation network, energy-saving effect is extremely significant unique advantages; the national metallurgy, nonferrous metals, gold, chemical, building materials and nuclear industry systems of many mines, the application of this series of energy-saving fans. This series of mine energy-saving fans are widely used in the main fans and auxiliary fans used in large and medium-sized key mines of various systems, and ideal technical effects and economic benefits have been obtained.　　Second, the characteristics of themine axial flow main fan(main fan) 1, the structural characteristics of the fan (1),the mine axial flow main fan (main fan) fan by the collector, host, diffuser, round square joint, muffler, diffusion tower and other components, each component with bolts.　　(2)The axial flow main fan(main fan) for mining adopts the direct connection mode of motor and impeller, which reduces the ventilation resistance loss such as S-type air duct, improves efficiency, reduces the safety hazard and maintenance trouble caused by S-type air　　Mine axial flow main fan(main fan) is composed of a set of impeller plus static guide blades; (4), fan selection high-quality fan dedicated motor, motor placed in the flow channel for heat dissipation and diversion. This is conducive to the heat dissipation of the motor, thus increasing the safety of the fan operation.　　(5)The fan is equipped with non-stop refueling device and oil drainage device, which can fill lubricating oil during operation. When stopping, the oil drainage cover can be opened to eliminate waste oil.　　(6)Temperature measuring elements are embedded between the bearings and stator windings of the motor, which can display the temperature of each part during the operation of the fan.　　(9)The wind blades are twisted wings, good aerodynamic performance, wide efficient area and energy saving.　　(10)The blades are adjustable structure, and the blade angle can be adjusted according to different working conditions to keep the fan running in high efficiency area.　　2, mine axial flow main fan (main fan) performance characteristics (1), this series is efficient, energy-saving, low noise, large air volume fan.　　(2)The hump area of this series of fans is narrow and the wind pressure is relatively stable, the surge phenomenon of air flow is weak, and the air flow is stable.　　(3)This series of fans has a wide range of high efficiency area, which can adapt to the change of mine production and keep running at high efficiency when ventilation parameters change.

3, mine axial flow main fan (main fan) supporting special parts Description (1), muffler This series of muffler is specially designed for the fan matching muffler device, using compound and muffler wall combination structure, greatly reducing the noise, solve the axial flow fan outlet noise high problem, thus ensuring that users have a good environment. In the design, the performance of the fan is fully considered, and the internal structure of the muffler is optimized to reduce its resistance loss; in the manufacturing process, the user site environment is considered, and anti-corrosion measures are adopted.　　(2)Diffusion tower This series of diffusion tower design adopts streamline to ensure that the direction of air flow does not change abruptly during the change process. Its role one: change the direction of airflow, protect the surrounding environment and reduce noise; role two: reduce the dynamic pressure loss of the fan, convert it into effective static pressure, and improve the fan efficiency.　　(3)On-line monitoring and early warning system This system can accurately reflect and record the fan's operating curve, wind pressure, air volume, wind speed, bearing and stator temperature and current, voltage, vibration and other parameters, and can record the archives and fault alarm, can be called from the microcomputer at any time for three months of fan operation.　　(4)The system is specially designed according to the requirements of Coal Mine Safety Regulations and the particularity of the fan to meet various protections of the fan motor (motor overload, voltage loss, short circuit and other protections).　　(5)This series of fans can be matched with different types of dampers according to user needs. One is butterfly valve plus test air duct, and the other is fully sealed damper. All of the above dampers can be equipped with automatic control system to control the damper opening and closing.　　Third, fan installation, debugging 1, according to the fan specifications to deal with the installation site, the base ground must be flat tamped.　　Before installation, all parts of the fan must be checked: a, whether the parts are complete;b, whether the impeller is flexible;c, whether the blades are rubbed against the wall;d, whether the blades are firmly installed;e, whether the blades are damaged. Problems found should be dealt with in a timely manner, and hidden dangers of accidents must not be allowed.　　3. During installation, hoist all parts of the fan to the laid rail in sequence, pad the sealing ring in the required place, connect the parts firmly with bolts, and connect the power line and thermometer meter line according to the motor instruction manual.　　4, check whether the inlet and outlet oil is smooth, and inject No. 2 molybdenum disulfide lithium-based lubricating oil (or better quality grease).　　5, check the parts, after the installation is correct, the manual brake is correct, and the test run can be carried out.　　6, after long-distance transportation or long-term use of the motor, before use must measure the stator insulation resistance (insulation resistance shall not be less than 0.5 megohm 380V), after inspection qualified before turning on the power supply, start the fan. During trial operation, current, voltage, stator and bearing temperature of motor shall be observed frequently, and any abnormality shall be stopped immediately for inspection.　　4. Operation and maintenance of the fan 1. Before starting the fan, check whether there are foreign bodies in the flow passage to prevent the impeller of the fan from being damaged by foreign bodies after starting.　　2. Before starting the fan, please read the starting instructions and motor instructions in detail, operate the starting equipment as required, adjust the rotation direction, and ensure the normal operation of the fan.　　3, the fan starts, and after reaching normal operation, observe in time: a, whether the current of the motor exceeds the rated current;b, whether there is abnormal sound in the fan flow channel. If any problem is found, stop the machine in time for inspection. After the cause is found out and the fault is eliminated, it can enter the normal operation state.　　4, fan in the use of the process, should be equipped with operating records, system to record fan operation, including: a, fan start and stop time, stop reasons;b, ambient temperature, humidity and atmospheric pressure;c, motor working voltage, working current, temperature of each bearing, motor stator temperature. If any items exceeding the index are found, stop immediately for inspection;d. Air pressure and air volume of fan;e. Time, quantity and brand of molybdenum disulfide lithium base lubricating oil added to motor bearings;f. Abnormal conditions found in regular inspection;g. Details of faults and troubleshooting.　　5, fan in the process of operation, according to the motor manufacturer's instructions for maintenance of the motor, the right amount of molybdenum disulfide lithium-based lubricating oil.　　6, the fan regularly shut down to check whether each component meets the requirements: a, check the front and rear bearings of the motor. Find the problem to replace the bearing according to the model, and replace the molybdenum disulfide lithium base lubricating oil.　　b. Check whether the blade is loose and whether the installation angle of the blade is the same as that originally set. Problems found should be dealt with in a timely manner.　　c, blade installation angle adjustment method: according to the fan characteristic curve and mine ventilation requirements, select the required installation angle. Open the hub cover plate, loosen the petiole nut, align the front of the blade with the graduation mark according to the selected installation angle on the graduation of the hub drum surface, tighten the petiole nut, lock the nut, cover the cover plate, and complete the adjustment.　　Note: After blade adjustment, be sure to check whether the installation angle of each blade is consistent, otherwise adjust it again.　　8. Check the reliability of measuring instruments frequently to prevent accidents caused by thermometer and ammeter failure.　　9, drivers and other personnel often check, once found abnormal sound or vibration, temperature and other phenomena, should immediately stop processing, troubleshooting before starting.　　V. Inspection and transportation of fans 1. The fans have been debugged before leaving the factory and passed the inspection. Simple packaging is adopted.　　2, small fan machine factory, large fan host and diffuser and its accessories separate production and transportation.　　3. This series of fans can be transported by land or water.　　4, accompanied with a packing list, instructions for use, product certificate each one.
